PrestoSync Setup and Download
PrestoSync is a program offered by PrestoSports that serves two purposes:
The ability to push stats from 3rd party stats programs into the Presto network for live stats (ex. NCAA LiveStats)
The ability to push stats from PrestoStats to a scoreboard
System Requirements:
Windows 10 or 11
32-bit or 64-bit
You can purchase PrestoSync at our Presto store here- PrestoSports Store or by contacting your Customer Success Manager. PrestoStats is required for PrestoSync. If you don’t know who your Customer Success Manager is you can find their contact information by going to the Resource Center, click Explore Resources, and then click Contact Your Customer Success Manager. If that option doesn’t appear for you, then you can contact our Support team and they will get you into contact with your Customer Success Manager.
📘 Instructions
Step 1: Package Acquisition
The current version in use is version 2.3, so if you aren’t showing that version check your download files to make sure it’s version 2.3 that you are trying to install. Contact our Support team if the installation files you downloaded aren’t showing that version of PrestoSync. If you used PrestoSync in previous school years, make sure to download it each year when you purchase it to insure you are using the most updated version.
PrestoWeb clients
You can download PrestoSync by logging into your Presto website, go to the GameDay tab, navigate to any sports season that uses stats, click on the Stats tab, and then click Download PrestoSync.
Non-PrestoWeb clients
You should have received the download links for PrestoSync in a follow-up email after purchasing the program. If you didn’t receive those links, please reach out to our Support team using this form to request those download links.
Step 2: Login and Access
Login to PrestoSync with your PrestoCMS user account credentials
User Access
Provided the client account you’re assigned to is permitted to access PrestoSync, you can now control which users within your client account can access PrestoSync. Access to PrestoSync for an individual user means:
They can see an additional stats tab titled ‘Download PrestoSync’ to obtain the latest Mac and Windows versions of the software. (PrestoWeb clients)

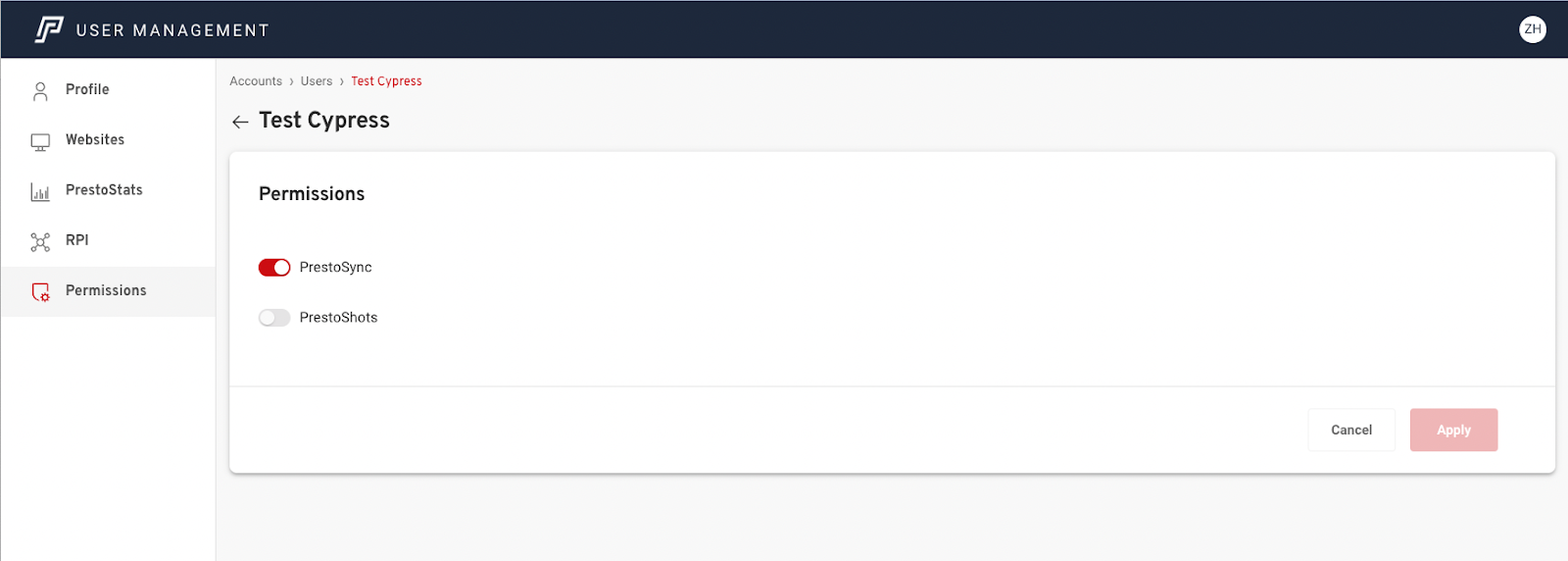

Once the software is installed, permitted users will be able to login to PrestoSync successfully using their PrestoCMS credentials and utilize the software for all stats platforms and teams they are permitted to access. To provide access to your account users, account administrators may simply access user management and update the user's permission setting below:
Step 3: Login to the software

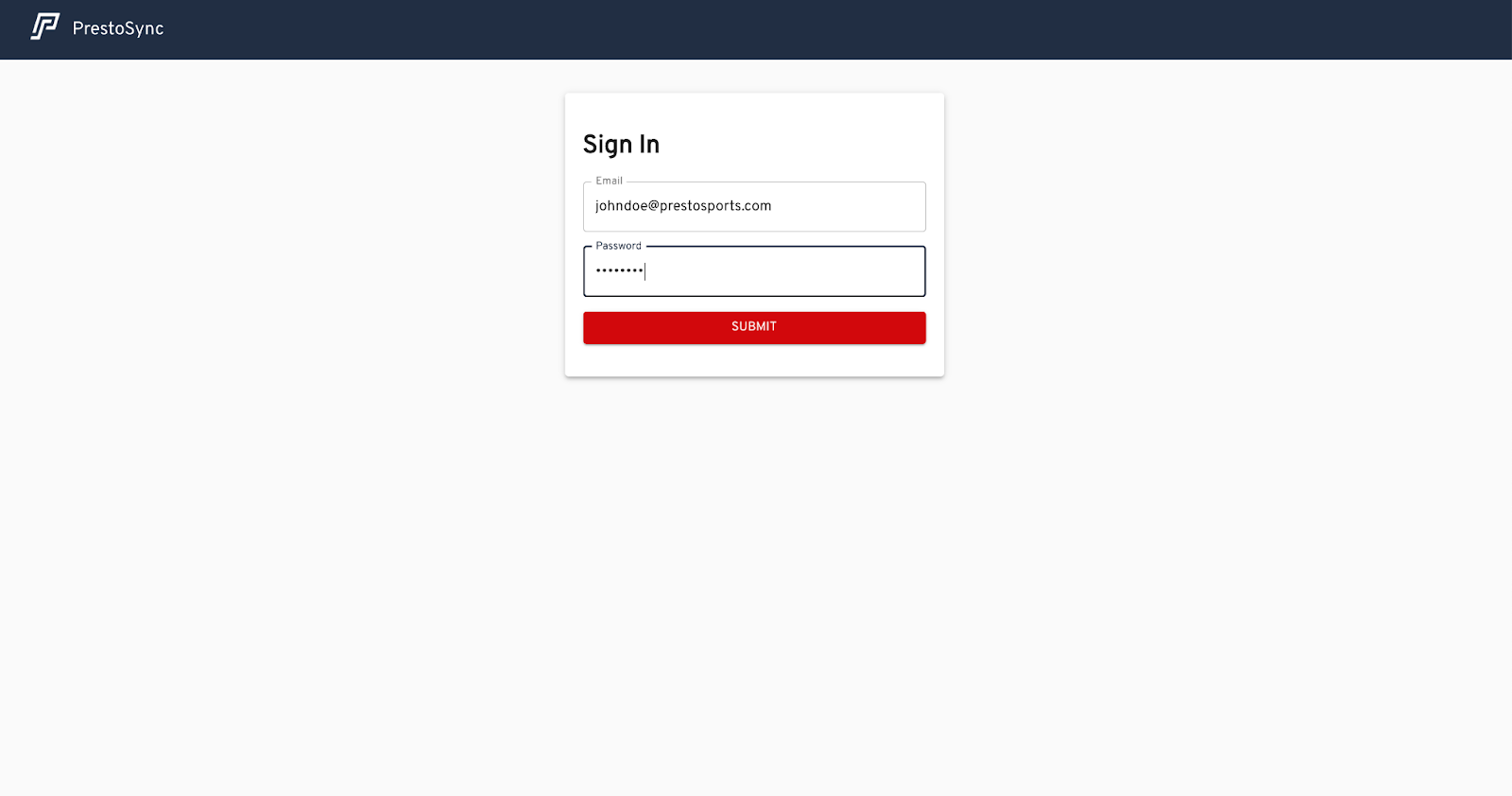

After ensuring the proper access, login to the application:
Note: An error message upon login stating “You do not have permission to access this application” will indicate your user does not have the required access permissions.
Step 4: Select an Event

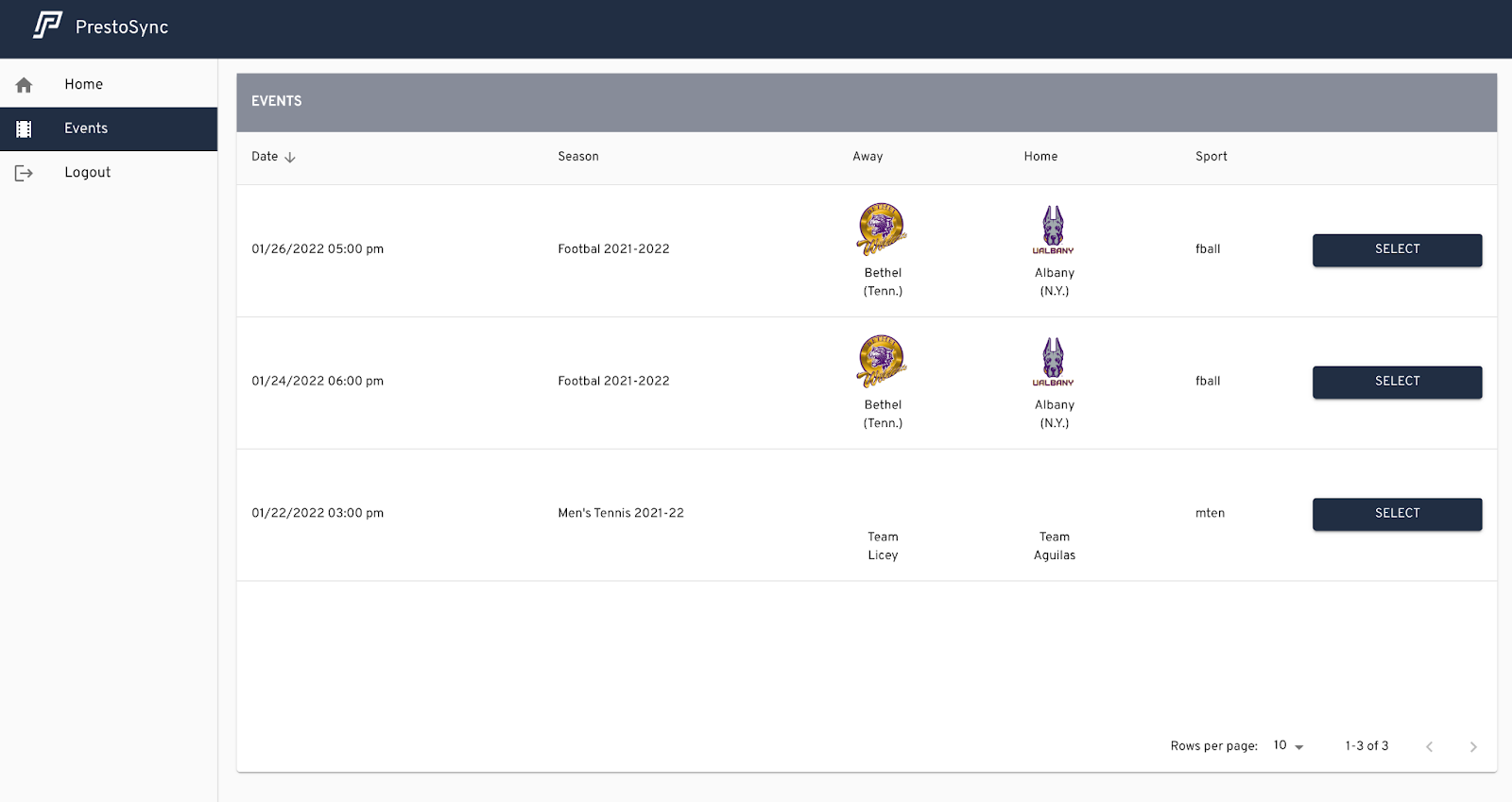

This page will return and display all events (‘not started’ or ‘in progress’) that fall within 15 days before or after the current date, given the user has team RPI access.
Step 5: Transmission from your scoreboard or external stats platform to Presto
After locating your event, it's time to set up your transmission into the PrestoSports network. Some primary uses support:
Ingesting statistics from an external stats provider or scoreboard, to:
Display live stats on your website if you’re not a current stats client
Display live stats on your ScoreShots created infographics that were obtained outside of the PS network.
Display final game box scores and individual stats on websites for games that were not inputted via PrestoStats.
And many more!

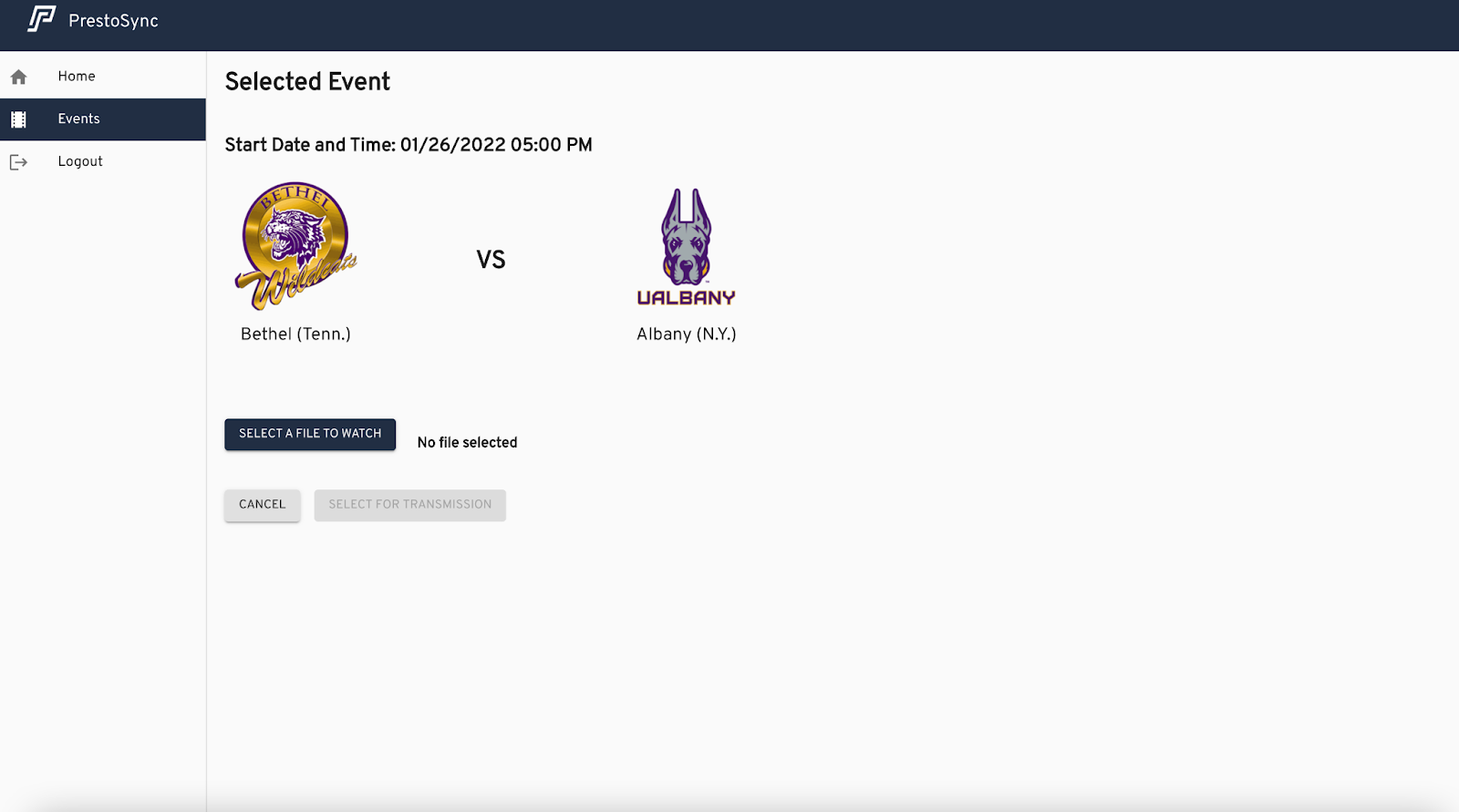

After the event and transmission method is selected, it’s time to target a live file from your local drive to track.

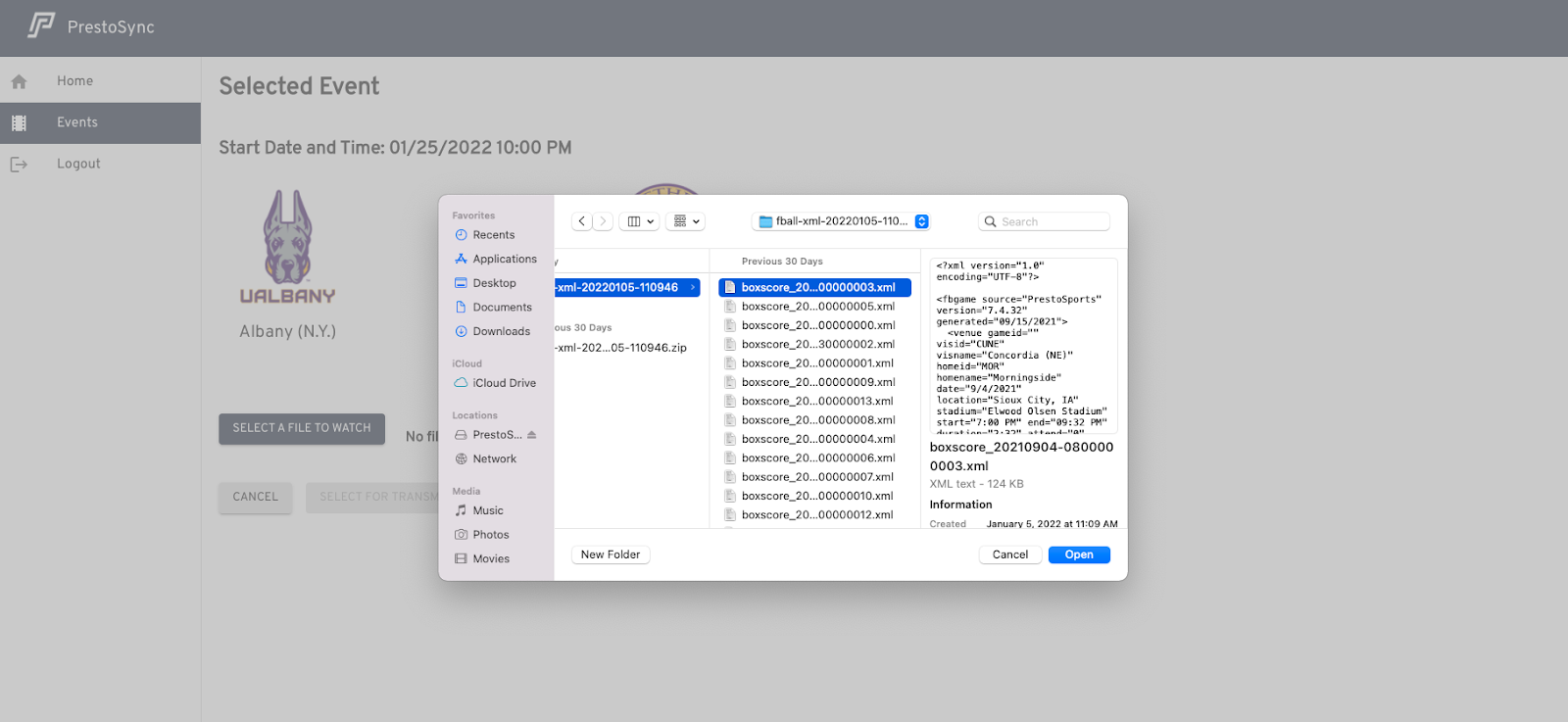

Select the game file from your local drive (xml) to allow PrestoSync to track it.

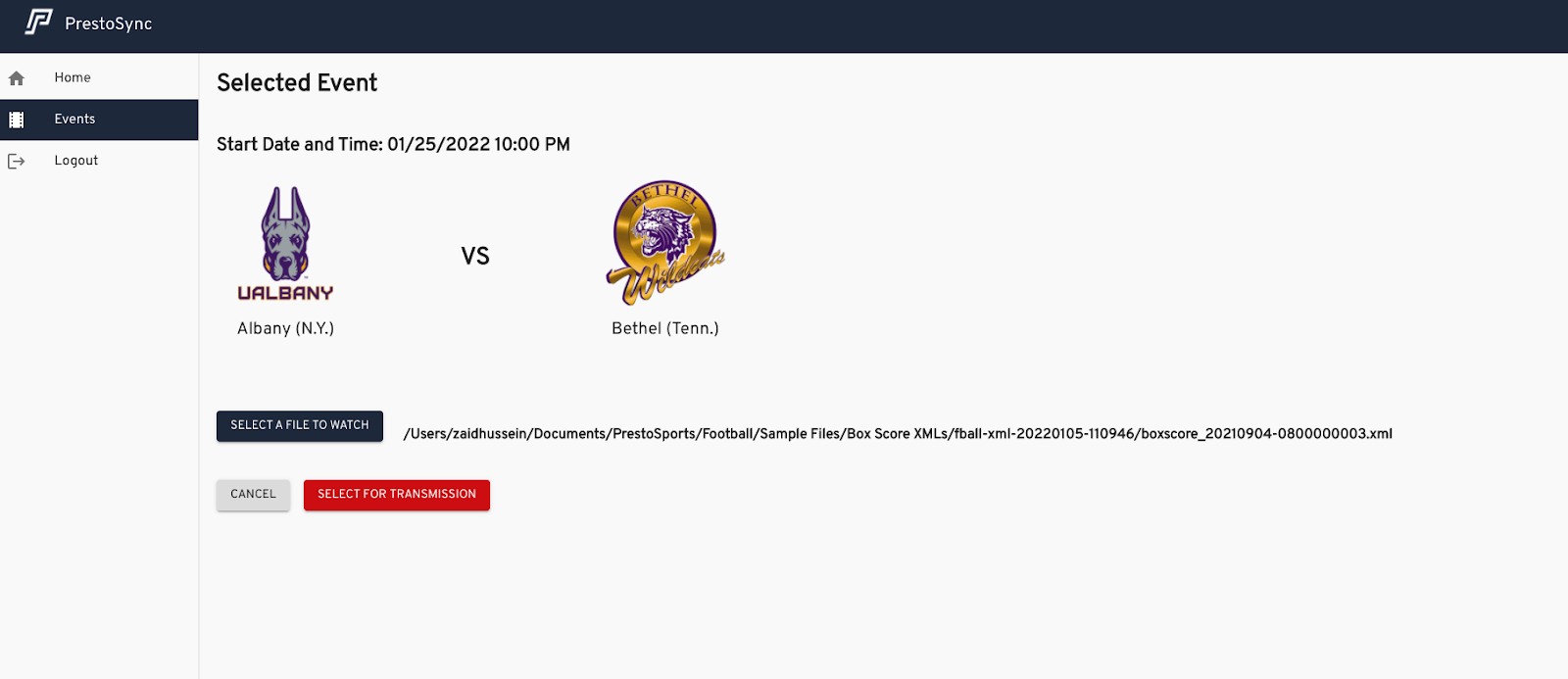

Once the file is identified and found, click ‘Select for Transmission’

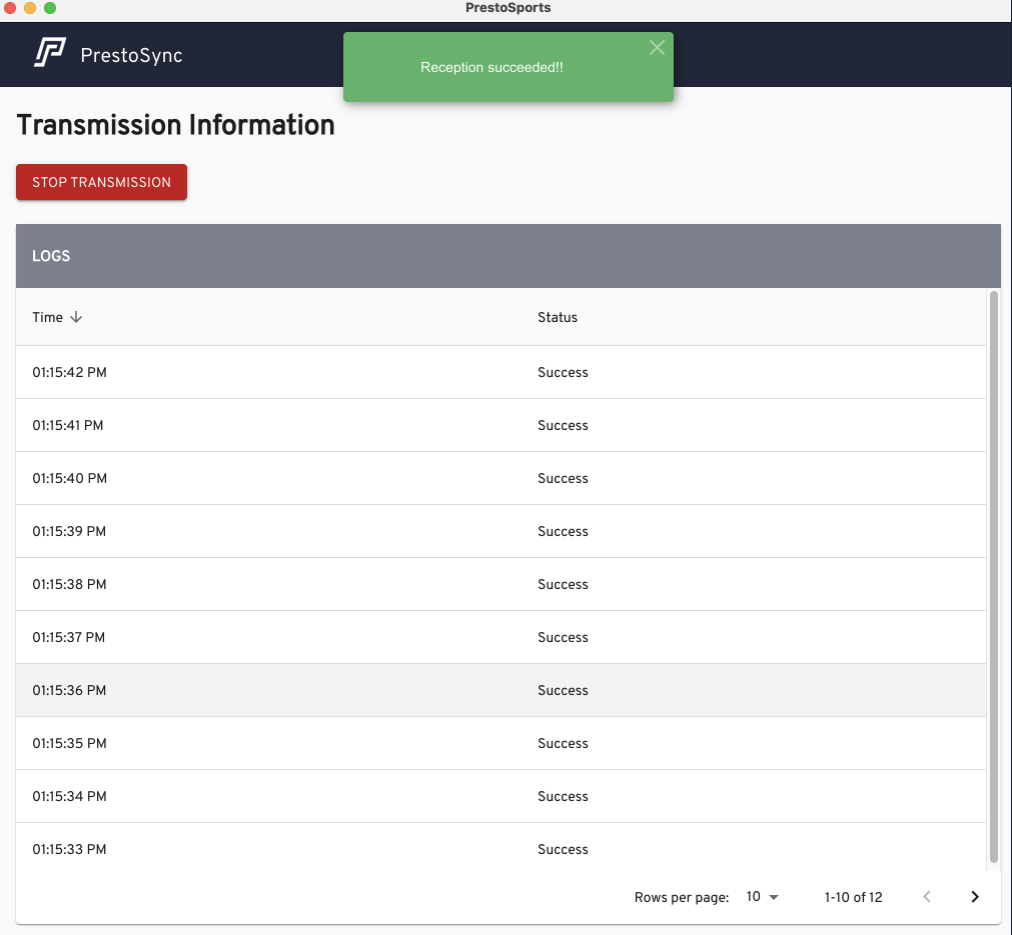

Finally, verify the transmission and connection are successful (i.e. ensure changes made to the selected file are captured via the transmission information below). A log will appear displaying the status of updates to confirm your connection to PrestoSync is working.

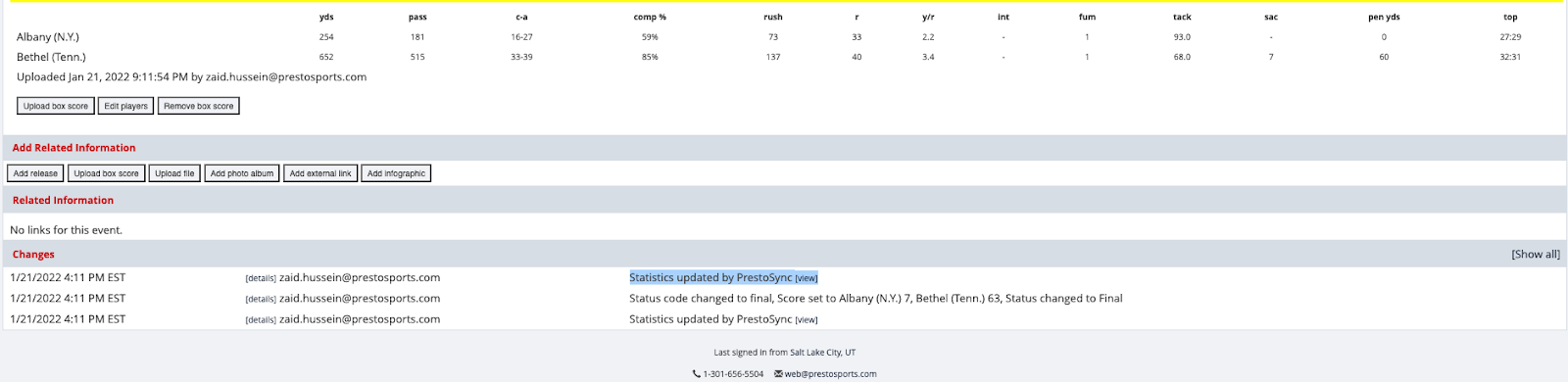

As the file and information are updated from your external platform, all updates are picked up and sent to PrestoCMS and can be found in event changes.
Step 6: Send from PrestoStats to your local drive (e.g. for scoreboard and external displays)
After locating your event, it's time to set up your transmission from the PrestoStats network to you local drive:
Some primary uses cases include obtaining real time statistics to
Display on in venue scoreboards
Note: for Daktronics scoreboards, only basketball and volleyball are currently supported. All other scoreboards and integration points that can ingest the StatCrew XML format for a given sport are supported.

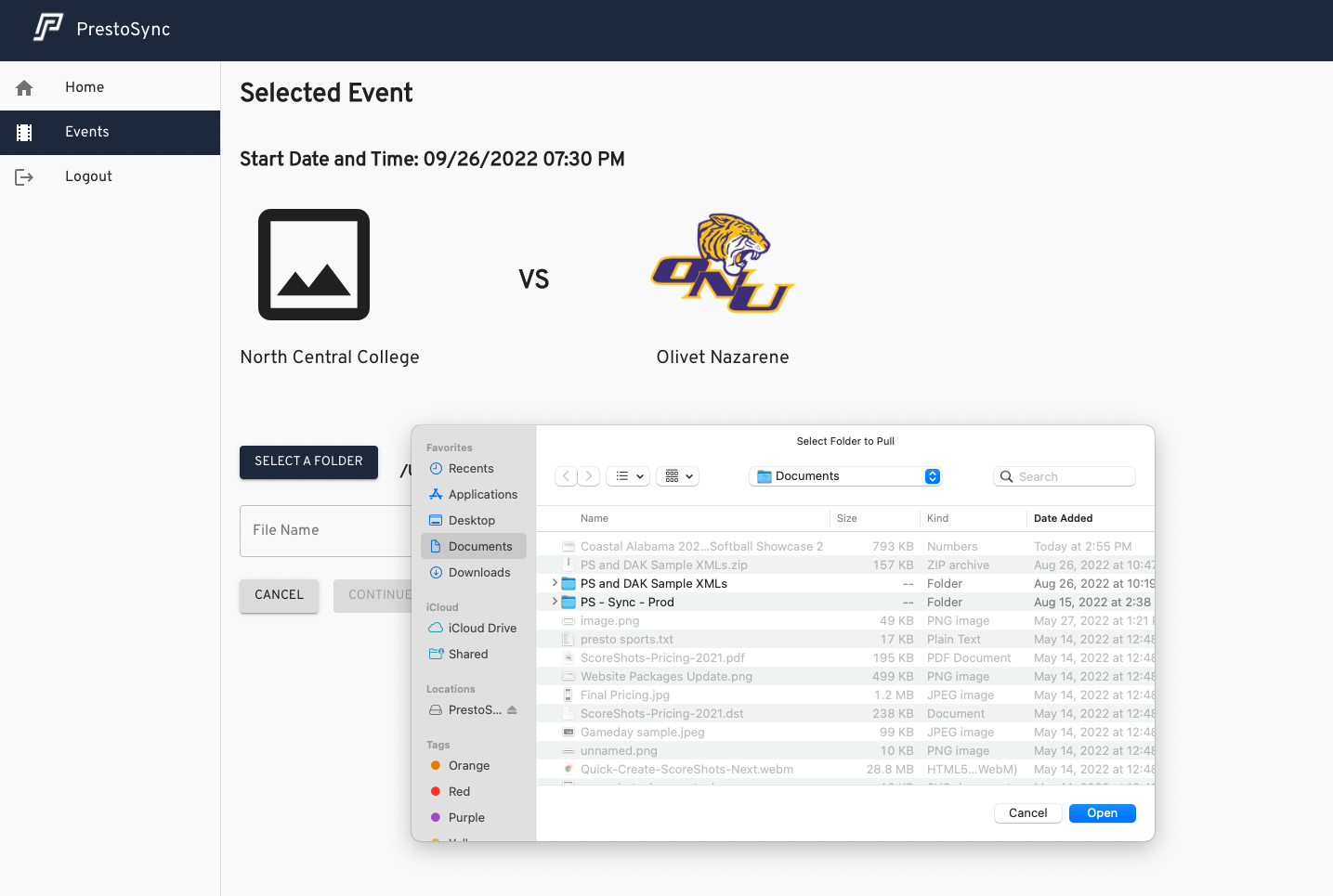

Select a live folder from your local drive for your new game file to reside and take note of the location.

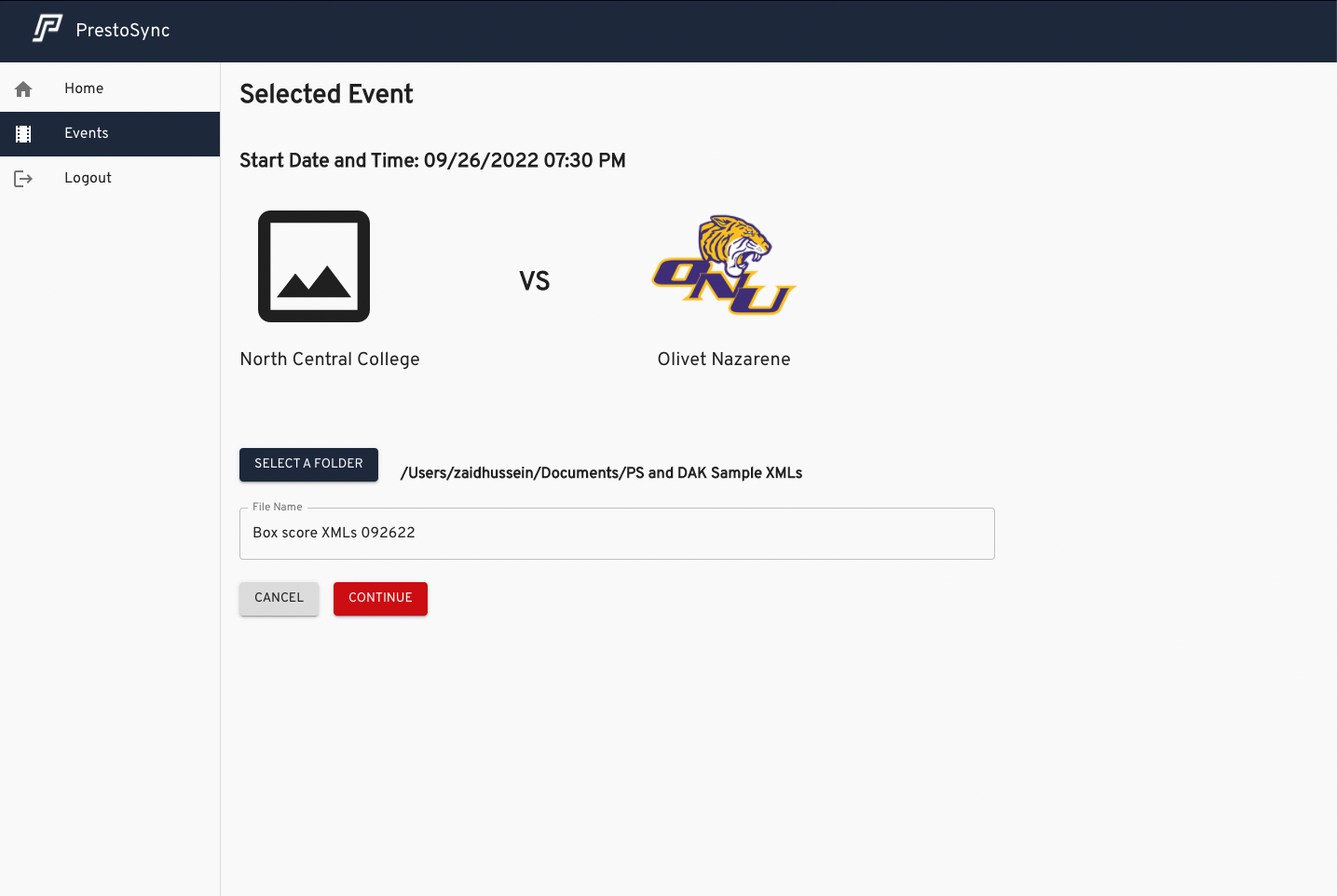

Name your file that will be updated in your local drive. To simplify easy retrieval, be sure to take note of the file location (above), and naming convention you use for the file (below)

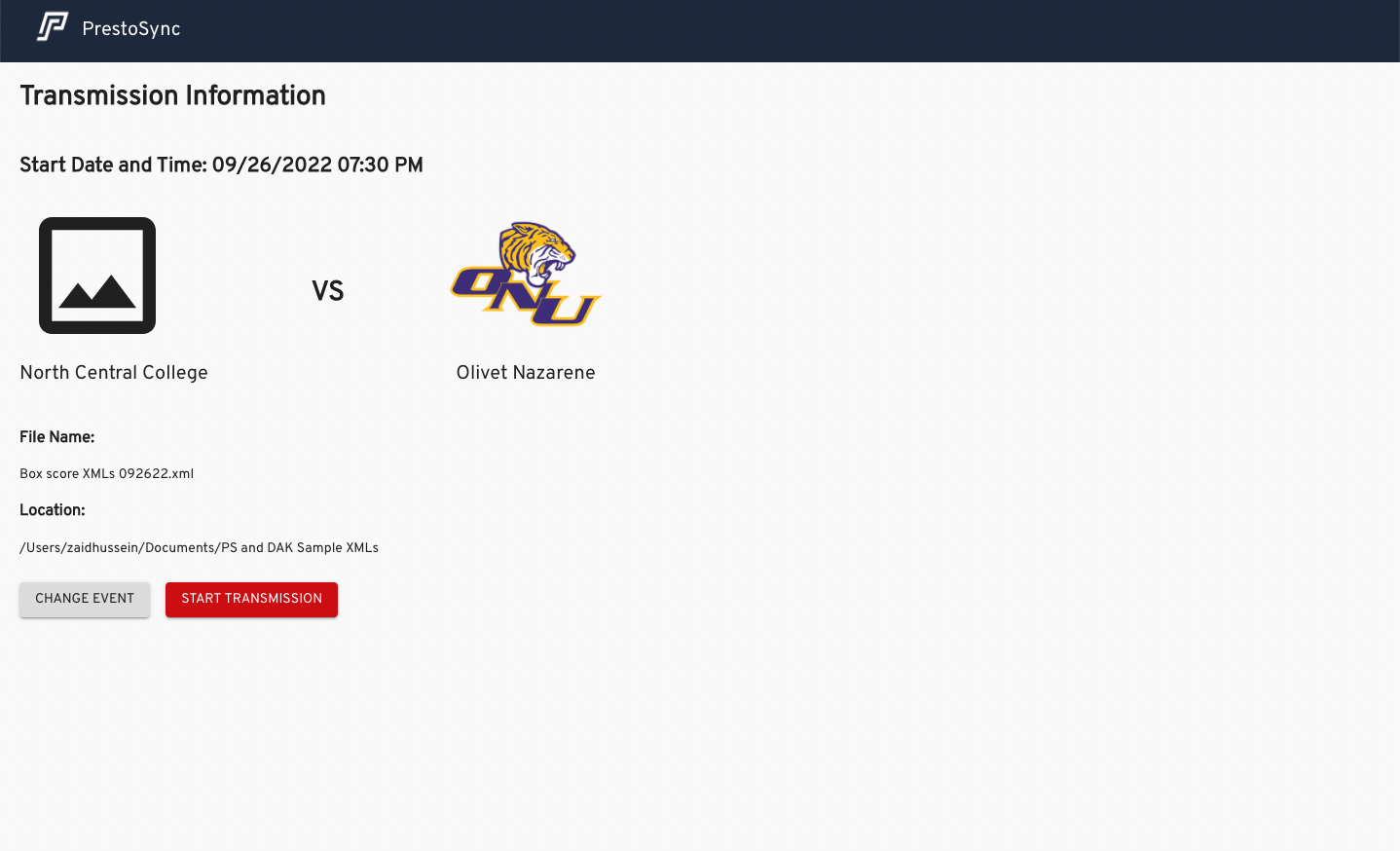

Verify Transmission Information, and…Start Transmission - Current interval = 1 second.
As changes occur in the stats entry platform, they are intermittently transmitted and logged below based on the interval above.

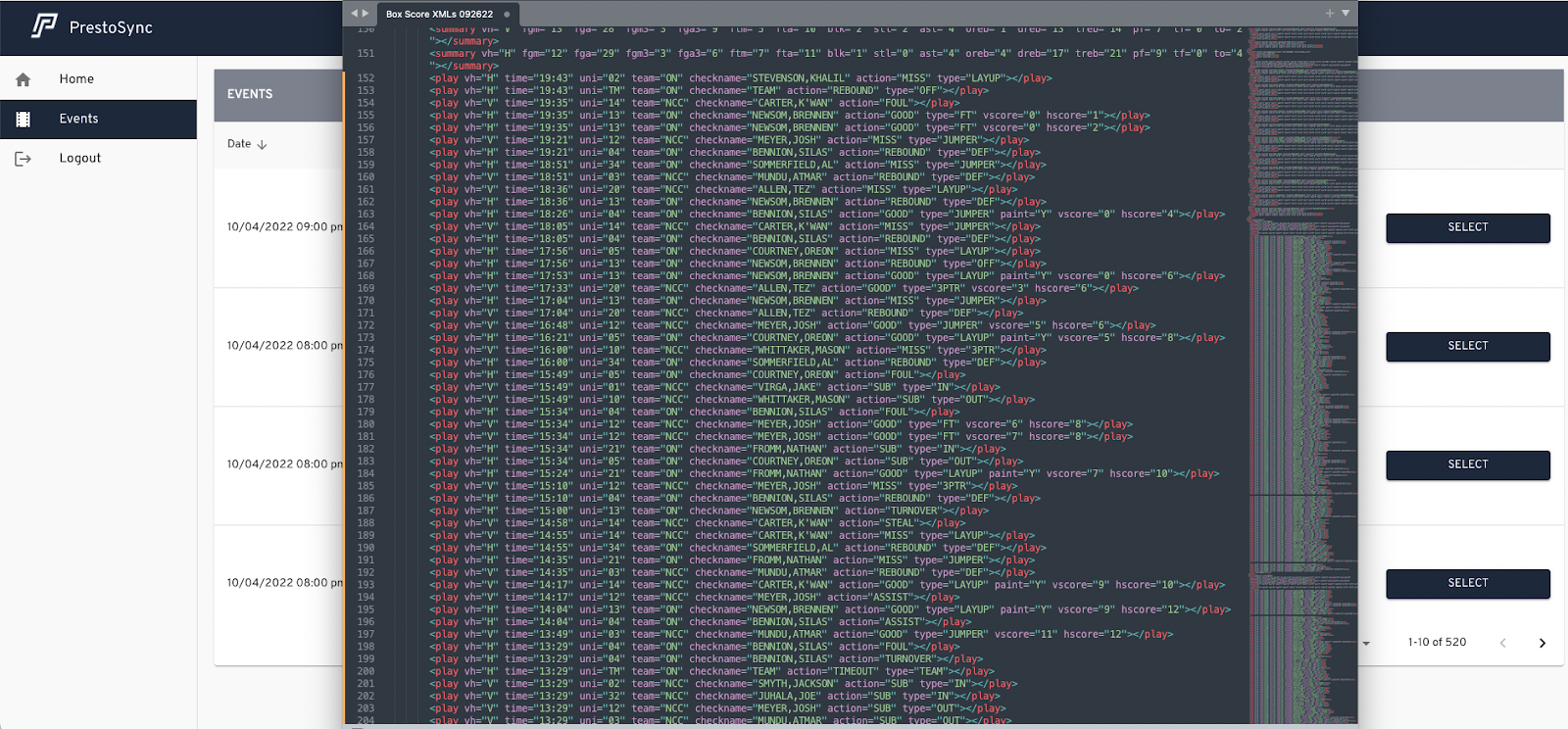

Finally, verify the transmission in the local file you created captured the new play entries.
Disclaimer Notes:
All transmissions and information that is transmitted is accurate based on the user's actions within the specific stats platform.
XMLs that are ingested or generated by PrestoSync follow the standardized StatCrew XML format for each sport. PrestoSports ensures the software and hardware it provides all follow this format. Any hardware or software not owned, provided, or verified by PrestoSports is not included in this promise.
You can find instructions for setting up 3rd party stats programs to push stats to Presto via PrestoSync below:
NLS Setup
Full instructions available here. Be sure to use the Folder option when setting up the IAU.
